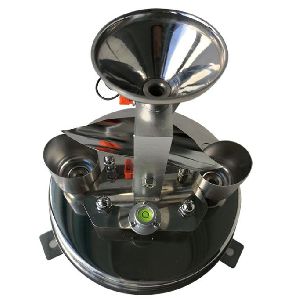

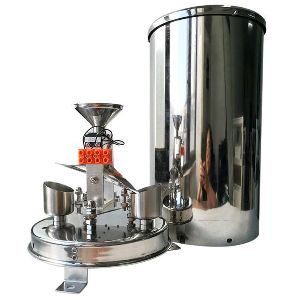

Siphon Tipping Bucket Rain Gauge


Siphon Tipping Bucket Rain Gauge

MOQ : 1 Piece(s)

Product Details

Brand Name SesnorMart.com
Gross Weight Gross Weight
Working Humidity 0 to 100%
Working Temperature -40 to 80 Deg C
Leveling Bulls Eye Level adthered
Power Supply Pulse : MaxDC24V,100mA ; RS485: DC5V or DC 7-24V
Insect Protection Stainless Steel Mesh
Acute Angle of Cutting Edge 40 to 45°
Material Stainless Steel
Model Siphon

Siphon Tipping Bucket Rain Gauge was designed for Precision Rain Measurements to provide a reliable, full stainless steel tipping bucket rain sensor. It has been update and improved with the addition of an inner funnel to even the flow of the rainfall into the gauge, providing better accuracy at higher rainfall rates. It simplicity of design assures trouble-free operation , yet provide accurate rainfall measurement

Features

  • WMO standard bucket’s top diameter (200mm/8”)
  • High Accuracy
  • Good stability
  • Low resistance

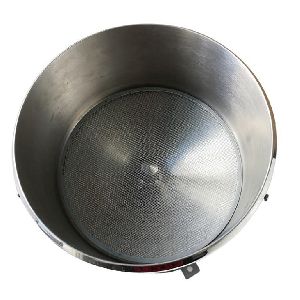

  • Mesh in the funnel preventing debris
  • Highly polished stainless steel construction
  • Horizontal Bubble in bottom


Applications

  • Environmental monitoring
  • Water supply system
  • Hydrological monitoring
  • Natural disaster monitoring
  • Climate research
  • Weather monitoring stations
  • Smart Agriculture


Parts

  • Enclosure assembly (Body)
  • Discharge holder
  • Funnel
  • Mounting foot
  • Bracket
  • Bull-eye Level
  • Tips
  • Reed switch

Yes! I am interested

Submit Your Requirement


.

.

.

.

.

.

.

.

Technical Specifications


Type
0.2mm 0.5mm
Material Stainless Steel
Measuring Range Nominal : 4mm/min or 240mm/hr
Maximum: 8mm/min or 480mm/hour
Accuracy Better Than 2%
Acute Angle of Cutting Edge 40 to 45°
Insect Protection Stainless Steel Mesh
Output Standard Pulse(Reed switch,
5pulse/mm); RS485 optional
Standard Pulse(Reed switch,
2pulse/mm); RS485 optional
Power Supply Pulse : MaxDC24V,100mA ; RS485: DC5V or DC 7-24V
Leveling Bulls Eye Level adthered
Working Temperature -40 to 80 Deg C
Working Humidity 0 to 100%
Gross Weight 3.8 Kg
